20. Project: a complete app

In this project you’ll build a complete app with a window: flashcards for learning anything, from capital cities to times tables. You write cards with a question on one side and the answer on the other, and the app quizzes you.

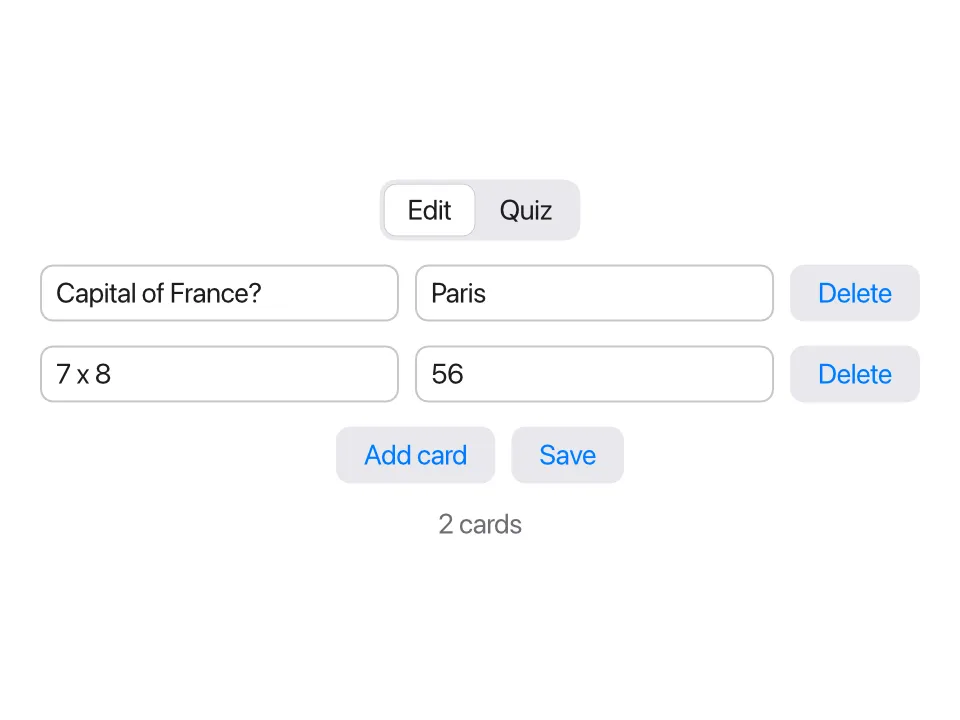

The flashcards app in edit mode: an Edit / Quiz picker at the top, two rows with a question field, an answer field and a Delete button ("Capital of France?" / "Paris" and "7 x 8" / "56"), then "Add card" and "Save" buttons and "2 cards"

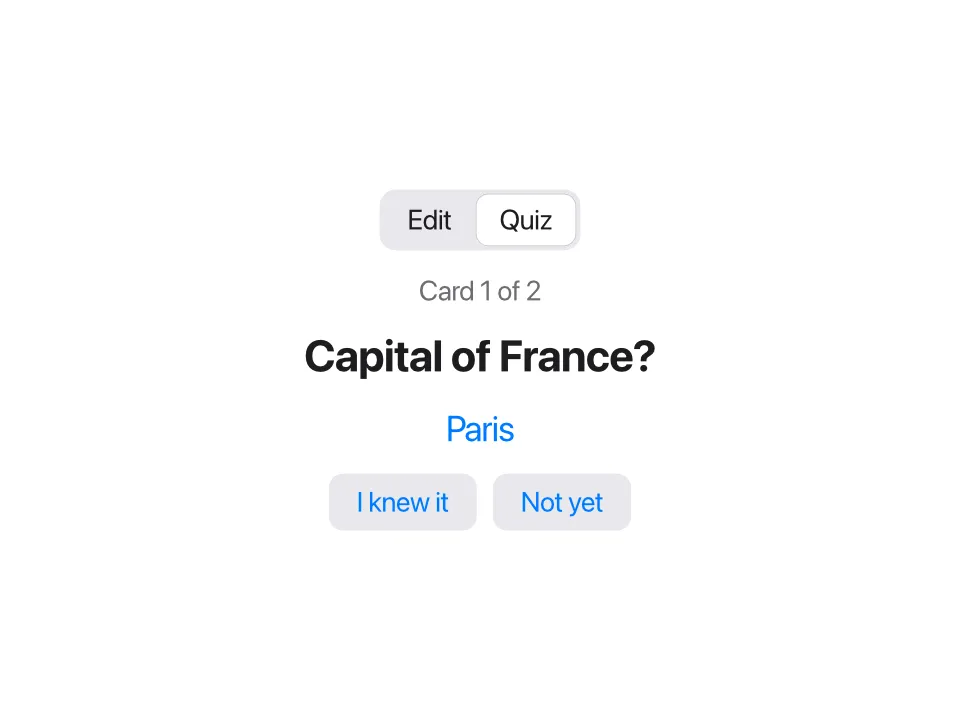

The same app in quiz mode: "Card 1 of 2", the question "Capital of France?" in large bold text, the answer "Paris" in blue, and the buttons "I knew it" and "Not yet"

In this lesson you’ll learn:

how to organize an app into files: model, storage, views and the app
how to write your own views, and pass them data with bind parameters so they can change it
how to show a list with for, and add and delete items
how to load saved data when the app starts, with .onAppear
how to switch between two modes with an enum and match
how to check the whole app with a script

It uses almost everything from the course: structs, enums, lists, closures, JSON files, and the app ideas from the last lesson.

The plan

The app has two modes:

Edit: a list of cards. Each card has a text field for the question and one for the answer, and a Delete button. Below the list: Add card and Save.
Quiz: one card at a time. First you see the question. Click Show answer to see the answer, then say whether you knew it. At the end, the app tells you your score.

The data is a list of cards, and the cards are saved in a JSON file, like the to-do list in lesson 18.

Like that project, this one is split into files by what they’re about:

flashcards/
  model.tsl     the Card struct, the Mode enum, small helper functions
  storage.tsl   loading and saving cards
  views.tsl     the views for one card: CardRow and QuizCard
  main.tsl      the app: its state, the window, and what the buttons do

Make a folder called flashcards. You’ll add the files one by one.

Step 1: the model

The model is the data the app works with, without anything about how it looks. Create model.tsl:

// model.tsl: the data.

struct Card {
    id: Int
    question: String
    answer: String
}

// The next free id: one more than the biggest id in use.
fn nextCardId(_ cards: [Card]) -> Int {
    (cards.map { c in c.id }.max() ?? 0) + 1
}

// "1 card", "2 cards": the right word for the number.
fn cardCount(_ count: Int) -> String {
    if count == 1 { "1 card" } else { "{count} cards" }
}

Why does a card need an id? Two cards could have the same question and answer, so the question can’t tell them apart. The Delete button needs to say which card to delete, and the window needs to know which row belongs to which card. A number that’s different for every card solves both. nextCardId finds the biggest id so far and adds one. (max() is nil for an empty list, so the first card gets 0 + 1.)

Step 2: a view for one card

Each card in the list is shown as a row: two text fields and a button. A row is a good candidate for a view of your own. You declare it with view, much like a function, and use it just like Text or Button. Create views.tsl:

// views.tsl: the parts of the window.

// One card in the editor. `bind` lets the fields change the app's card.
view CardRow(card: bind Card, onDelete: fn()) {
    HStack(spacing: 8) {
        TextField("Question", text: card.question)
        TextField("Answer", text: card.answer)
        Button("Delete") { onDelete() }
    }
}

Two parameters, and each teaches something:

card: bind Card. A normal parameter is a copy, which the view can read but not change. But typing in the row’s text fields must change the real card in the app’s list. The word bind makes the parameter a binding, like TextField’s text: from the last lesson: the row gets access to the caller’s card itself. So text: card.question binds the text field to one field of that card.
onDelete: fn(). The row can’t delete itself: the list of cards belongs to the app, and the row can’t see it. So the app gives the row a function to call when Delete is clicked, and decides itself what deleting means. You met function parameters in lesson 13.

Step 3: the app, with a list

Now create main.tsl, with an app that shows one CardRow per card:

app Flashcards(width: 480, height: 360) {
    state cards: [Card] = []

    VStack(spacing: 12) {
        for card in cards {
            CardRow(card: card) { delete(id: card.id) }
                .id(card.id)
        }
        Button("Add card") { addCard() }
        Text(cardCount(cards.count))
            .color(.secondary)
    }
    .padding(20)

    fn addCard() {
        cards.append(Card(id: nextCardId(cards), question: "", answer: ""))
    }

    fn delete(id: Int) {
        cards.removeAll(where: { c in c.id == id })
    }
}

for card in cards inside the body makes one row per card. Because cards is state, each card in the loop stands for that card in the list, so it can be passed to the bind parameter: CardRow(card: card). No special marker is needed at the call.
The block after CardRow(card: card) is its onDelete function, written as a trailing block like a button’s action. It calls the app’s delete with this card’s id.
.id(card.id) tells Tessel which row belongs to which card. Without it, rows are matched by position, and after deleting the first card, the text field you were typing in could end up attached to the wrong row. See Identity with .id.
addCard adds an empty card, ready to fill in. delete removes the card with that id.

Check it and try it headless. click field 1 clicks the first text field in the window, and click button 1 the first button, which is the first row’s Delete button:

tessel check flashcards
TESSEL_SCRIPT='click "Add card"; click "Add card"; click "Add card"; click field 1; type Capital of France?; click field 2; type Paris; tree; click button 1; tree' tessel run flashcards

ok: 3 files checked, no errors
Root
  View
    VStack
      View
        HStack
          TextField "Question" = "Capital of France?"
          TextField "Answer" = "Paris"
          Button "Delete"
      View
        HStack
          TextField "Question" = ""
          TextField "Answer" = ""
          Button "Delete"
      View
        HStack
          TextField "Question" = ""
          TextField "Answer" = ""
          Button "Delete"
      Button "Add card"
      Text "3 cards"
Root
  View
    VStack
      View
        HStack
          TextField "Question" = ""
          TextField "Answer" = ""
          Button "Delete"
      View
        HStack
          TextField "Question" = ""
          TextField "Answer" = ""
          Button "Delete"
      Button "Add card"
      Text "2 cards"

Each CardRow shows up in the tree as a View with its HStack inside. Typing went into the first card, and Delete removed exactly that card.

Step 4: saving and loading

Close the window, and the cards are gone. Add storage.tsl, which works exactly like in the last two projects:

// storage.tsl: saving and loading cards as JSON.

fn cardsFile() -> String {
    joinPath(appDataFolder("Flashcards"), "cards.json")
}

fn loadCards() -> [Card] {
    let text = readFile(cardsFile()) ?? "[]"
    let cards: [Card] = fromJson(text) ?? []
    cards
}

fn saveCards(_ cards: [Card]) {
    writeFile(path: cardsFile(), text: toJson(cards, pretty: true))
}

In an app, when do you load? The body can’t do it: it runs again after every change, and it isn’t allowed to change state. Instead, use the .onAppear modifier. Its block runs once, when the view first appears, which for the app’s outermost view is when the app starts. It’s the usual place to load data.

In main.tsl, add a Save button next to Add card, load the cards in .onAppear, and save after deleting:

app Flashcards(width: 480, height: 360) {
    state cards: [Card] = []

    VStack(spacing: 12) {
        for card in cards {
            CardRow(card: card) { delete(id: card.id) }
                .id(card.id)
        }
        HStack(spacing: 8) {
            Button("Add card") { addCard() }
            Button("Save") { saveCards(cards) }
        }
        Text(cardCount(cards.count))
            .color(.secondary)
    }
    .padding(20)
    .onAppear { cards = loadCards() }

    fn addCard() {
        cards.append(Card(id: nextCardId(cards), question: "", answer: ""))
    }

    fn delete(id: Int) {
        cards.removeAll(where: { c in c.id == id })
        saveCards(cards)
    }
}

Test it with two runs. The first adds a card and saves; the second only prints the tree, so everything it shows was loaded from the file:

TESSEL_SCRIPT='click "Add card"; click field 1; type Capital of France?; click field 2; type Paris; click "Save"' tessel run flashcards
TESSEL_SCRIPT='tree' tessel run flashcards

Root
  View
    VStack
      View
        HStack
          TextField "Question" = "Capital of France?"
          TextField "Answer" = "Paris"
          Button "Delete"
      HStack
        Button "Add card"
        Button "Save"
      Text "1 card"

Step 5: the quiz

Now the second mode. Two modes, one or the other: that’s an enum. Add it to model.tsl:

enum Mode { edit, quiz }

A Picker at the top of the window chooses the mode, and a match in the body shows the views for the current one. The quiz needs a little state of its own: which card it’s on (current), whether the answer is showing, and how many you knew.

The quiz card is another view. Add it to views.tsl:

// The quiz: one question at a time.
view QuizCard(card: Card, showAnswer: Bool) {
    VStack(spacing: 12) {
        Text(card.question)
            .font(size: 22, weight: .bold)
        if showAnswer {
            Text(card.answer)
                .font(size: 18)
                .color(.blue)
        } else {
            Text("?")
                .font(size: 18)
                .color(.secondary)
        }
    }
}

This one has no bind: it only shows the card, so a copy is all it needs. Use bind only when a view has to change the caller’s data.

Here’s the finished main.tsl:

// main.tsl: the app, its state, and what the buttons do.

app Flashcards(width: 480, height: 360) {
    state cards: [Card] = []
    state mode = Mode.edit
    state current = 0
    state showAnswer = false
    state known = 0

    VStack(spacing: 12) {
        Picker(selection: mode) {
            Text("Edit").tag(.edit)
            Text("Quiz").tag(.quiz)
        }

        match mode {
            .edit -> {
                for card in cards {
                    CardRow(card: card) { delete(id: card.id) }
                        .id(card.id)
                }
                HStack(spacing: 8) {
                    Button("Add card") { addCard() }
                    Button("Save") { saveCards(cards) }
                }
                Text(cardCount(cards.count))
                    .color(.secondary)
            }
            .quiz -> VStack(spacing: 12) {
                if cards.isEmpty {
                    Text("Add some cards first.")
                } else if current < cards.count {
                    Text("Card {current + 1} of {cards.count}")
                        .color(.secondary)
                    QuizCard(card: cards[current], showAnswer: showAnswer)
                    if showAnswer {
                        HStack(spacing: 8) {
                            Button("I knew it") { next(knewIt: true) }
                            Button("Not yet") { next(knewIt: false) }
                        }
                    } else {
                        Button("Show answer") { showAnswer = true }
                    }
                } else {
                    Text("You knew {known} of {cards.count}.")
                        .font(size: 22, weight: .bold)
                    Button("Start again") { restart() }
                }
            }
            .onAppear { restart() }
        }
    }
    .padding(20)
    .onAppear { cards = loadCards() }

    fn addCard() {
        cards.append(Card(id: nextCardId(cards), question: "", answer: ""))
    }

    fn delete(id: Int) {
        cards.removeAll(where: { c in c.id == id })
        saveCards(cards)
    }

    fn next(knewIt: Bool) {
        if knewIt {
            known += 1
        }
        current += 1
        showAnswer = false
    }

    fn restart() {
        current = 0
        known = 0
        showAnswer = false
    }
}

How the quiz works:

The .quiz arm has three situations: no cards at all; a card to ask (current < cards.count); or the end, when current has gone past the last card.
While a card is asked, Show answer sets showAnswer. The body runs again, QuizCard now shows the answer, and the two answer buttons replace the Show answer button.
next counts the card if you knew it, and moves on. When current reaches cards.count, the body shows the score instead.
The quiz’s VStack has its own .onAppear { restart() }. It runs each time you switch to Quiz (the match starts showing that view), so every quiz starts from the first card. This is also why the app’s own .onAppear only runs once: the outer view never goes away.
The Picker changes mode through a binding, just like in the tip calculator.

Checking the whole app

Put the steps of a test session in a file, flashcards.script, one command per line. It fills in two cards, saves, and takes a quiz, knowing the first answer but not the second:

click "Add card"
click field 1
type Capital of France?
click field 2
type Paris
click "Add card"
click field 3
type 7 x 8
click field 4
type 56
click "Save"
click "Quiz"
tree
click "Show answer"
tree
click "I knew it"
click "Show answer"
click "Not yet"
tree

tessel check flashcards
TESSEL_SCRIPT="$(cat flashcards.script)" tessel run flashcards

ok: 4 files checked, no errors
Root
  View
    VStack
      Picker
        Text "Edit"
        Text "Quiz"
      VStack
        Text "Card 1 of 2"
        View
          VStack
            Text "Capital of France?"
            Text "?"
        Button "Show answer"
Root
  View
    VStack
      Picker
        Text "Edit"
        Text "Quiz"
      VStack
        Text "Card 1 of 2"
        View
          VStack
            Text "Capital of France?"
            Text "Paris"
        HStack
          Button "I knew it"
          Button "Not yet"
Root
  View
    VStack
      Picker
        Text "Edit"
        Text "Quiz"
      VStack
        Text "You knew 1 of 2."
        Button "Start again"

Every step did what it should. Keep this script: whenever you change the app, run it again and compare. That’s exactly how Tessel tests its own apps (see Testing your UI). The screenshots at the top of this page were made the same way, with the snapshot script command.

The saved cards.json, in the app’s folder, holds:

[
  {
    "id": 1,
    "question": "Capital of France?",
    "answer": "Paris"
  },
  {
    "id": 2,
    "question": "7 x 8",
    "answer": "56"
  }
]

Finally, run it for real with tessel run flashcards, and make some cards for something you want to learn.

How the pieces fit together

Look at how data moves through the app:

The app owns the data. cards and the quiz’s state live in main.tsl, as state. Nothing else stores data.
Down, as copies: QuizCard(card: cards[current], showAnswer: …) only shows the card, so it gets a copy.
Down, as bindings: CardRow(card: card) edits the card, so it gets a binding, and the text fields inside change the app’s list directly.
Back up, as function calls: the row can’t delete itself, so it calls the onDelete function the app gave it.
Out to the disk: only storage.tsl knows about files.

That’s the same shape as much bigger apps. Programs and files describes it in more detail.

Common mistakes

Binding to a filtered list

Say you want to hide empty cards in the editor, and loop over a filtered list:

                for card in cards.filter({ c in !c.question.isEmpty }) {
                    CardRow(card: card) { delete(id: card.id) }

error: `CardRow`'s `card:` changes its value, so it can't be given `card`, which is a loop variable
  --> flashcards/main.tsl:19:35
   |
19 |                     CardRow(card: card) { delete(id: card.id) }
   |                                   ^^^^
  ::: flashcards/main.tsl:18:21
   |
18 |                 for card in cards.filter({ c in !c.question.isEmpty }) {
   |                     ---- declared here
   |
   = help: loop over a `var` or `state` list to be able to change its items (a list made by `filter` or `sorted` is a new copy)

filter makes a new list of copies, so a change to one of its items would go nowhere. Loop over cards itself, and use if inside the loop to skip the ones you don’t want to show:

for card in cards {
    if !card.question.isEmpty {
        CardRow(card: card) { delete(id: card.id) }
            .id(card.id)
    }
}

Changing the app’s list from inside a row

It’s tempting to delete the card right in CardRow:

view CardRow(card: bind Card) {
    HStack(spacing: 8) {
        TextField("Question", text: card.question)
        TextField("Answer", text: card.answer)
        Button("Delete") { cards.removeAll(where: { c in c.id == card.id }) }
    }
}

error: cannot find `cards`
 --> flashcards/views.tsl:8:28
  |
8 |         Button("Delete") { cards.removeAll(where: { c in c.id == card.id }) }
  |                            ^^^^^ not found
  |
  = help: did you mean `card`?

A view only sees its own parameters and state; cards belongs to the app. That’s why CardRow takes an onDelete function instead.

Running one file

As with any program in a folder, run the folder (tessel run flashcards), not main.tsl, or the names from the other files are missing.

Ideas to extend it

1. Shuffle. Asking the cards in the same order every time makes the quiz too easy. Make each quiz use a shuffled copy of the cards.

Solution

Add a state for the quiz’s own list, state quizCards: [Card] = [], and fill it in restart:

    fn restart() {
        quizCards = cards.shuffled()
        current = 0
        known = 0
        showAnswer = false
    }

Then use quizCards instead of cards everywhere in the .quiz arm: quizCards.isEmpty, current < quizCards.count, QuizCard(card: quizCards[current], …) and so on. Since restart runs each time the quiz appears, every quiz has a new order. (To skip empty cards too: cards.filter { c in !c.question.isEmpty }.shuffled().)

2. Save automatically. The user has to remember to click Save. Save whenever a card is added, and when switching to the quiz (hint: restart runs then). Could you remove the Save button?

3. Practice what you missed. At the end of a quiz, offer a button Practice the missed ones, which starts a new quiz with only the cards you answered “Not yet”. You’ll need to remember those cards: a list of ids in a state works well.

4. Several decks. Add a name to a deck (struct Deck { name: String; cards: [Card] }) and let the user switch between decks with a Picker. Save all decks in one JSON file. Remember that a new field needs a default value if old files should still load.

5. Your own idea. A notes app, a habit tracker, a recipe book: they’re all “a list of structs, a view for one item, and a JSON file”. You now know how to build every one of them.

Summary

Organize an app into files: model (the data), storage (files), views (parts of the window) and the app (state and actions).
Write your own views with view Name(parameters) { … }, and use them like built-in ones.
A bind parameter lets a view change its caller’s data; a normal parameter is a read-only copy. Use bind only when the view edits.
A for loop over a state list makes one view per item, and its loop variable can be bound. Give rows an .id(…).
A view that can’t change the list itself takes a function parameter (onDelete: fn()), and the caller decides what happens.
.onAppear { … } runs when a view appears: load data there.
An enum and match switch between modes of an app.
A script in a file, run with TESSEL_SCRIPT, checks the whole app in seconds.

Next: 21. Where to go next
