Code editor
CodeEditor is a multi-line text editor made for code. It’s the editor the
Tessel IDE is built with, and you can use it in your own apps.

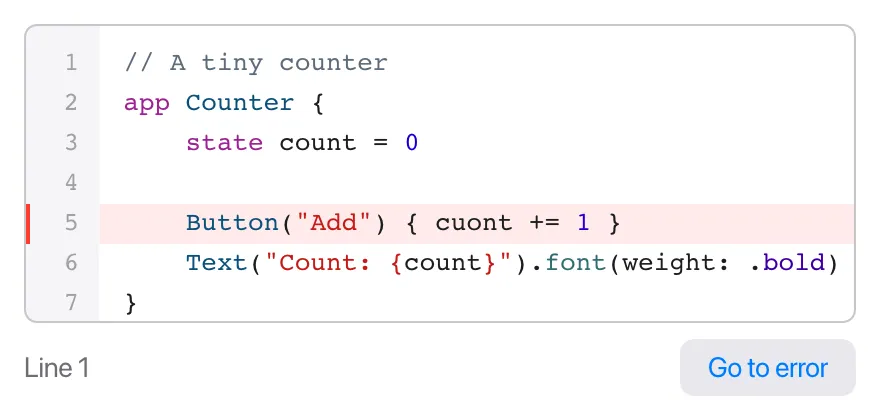

app Editor(width: 440, height: 210) { state source = "// A tiny counter\napp Counter \{\n state count = 0\n\n Button(\"Add\") \{ cuont += 1 }\n Text(\"Count: \{count}\").font(weight: .bold)\n}\n" state line = 1
VStack(spacing: 8) { CodeEditor(text: source, errorLines: [5], line: line) HStack { Text("Line {line}").color(.secondary) Spacer() Button("Go to error") { line = 5 } } } .padding(12)}
(The \{ in the string is an escaped brace, so that { isn’t read as
interpolation.)
Parameters
Section titled “Parameters”CodeEditor(text: source, errorLines: problems, line: currentLine)| Parameter | Type | What it does |
|---|---|---|
text: | bind String | The text being edited. Required. |
errorLines: | [Int] | Line numbers to mark as having errors. Optional; empty by default. |
line: | bind Int | The line the cursor is on. Optional. |
completions: | [Completion] | Suggestions to offer as the user types. Optional; see Code completion. |
completionStart: | Int | Where the word those suggestions are for starts (a byte offset in text). |
onComplete: | fn(Int) | Called when the editor wants suggestions, with the cursor’s byte offset. |
breakpoints: | [Int] | Lines to mark with a red dot in the margin. Optional; see For a debugger. |
stoppedLine: | Int | A line to highlight in yellow, as where a program is stopped. 0 (the default) for none. |
onBreakpoint: | fn(Int) | Called with the line when the margin is clicked. |
onChange: | fn() | Called after each edit that changes text (not when your program sets it). Optional. |
caret: | bind Int | Where the caret is, as a byte offset in text. Optional; see Following and moving the cursor. |
errorRanges: | [Range] | Parts of text (byte offsets) to underline with a red wavy line. Optional; see Understanding code. |
highlights: | [Range] | Parts of text to give a light gray background, like the uses of a name. Optional. |
onHover: | fn(Int) | Called when the mouse rests on the text, with the offset of the character under it. |
hoverText: | String | Shown next to the word the mouse rests on, while hoverAt: is the offset onHover was given. |
hoverAt: | Int | The offset hoverText is for. -1 (the default) for none. |
onDefinition: | fn(Int) | Called on a Cmd-click (Ctrl-click on Windows) in the text, with the offset clicked, and on F12, with the caret’s. |
onUses: | fn(Int) | Called on Shift+F12, with the caret’s offset. |
onRename: | fn(Int) | Called on F2, with the caret’s offset. |
onCaret: | fn(Int) | Called when the caret moves, with its offset. |
matches: | [Range] | Parts of text to mark as found by a search, the selected one stronger. Optional; see Finding text. |
selection: | bind Range | What’s selected, as byte offsets in text, both ways. Optional; see Finding text. |
Line numbers start at 1, as they do in the gutter.
What it does
Section titled “What it does”- Line numbers in a gray gutter on the left.
- Syntax colors for Tessel: keywords, strings (with the
{…}parts inside them colored as code), numbers, comments, capitalized names like types and views, function calls, and.cases. The colors are always Tessel’s, whatever the text is. - A monospaced font at 13 points. Long lines don’t wrap.
- Scrolling. Scroll with the mouse wheel or trackpad, up and down and (for long lines) sideways, or drag a scroll bar: one shows at the right when there are more lines than fit, and one at the bottom when a line is longer than the editor is wide. The editor also scrolls by itself to bring the cursor into view when you type or move it.
- All the usual editing keys, including selection, the clipboard and undo; see Editing text. On top of those, the keys of a code editor like VS Code’s, listed below.
- Indentation help:
- Enter starts the new line with the same indentation as the current one,
plus one more level (4 spaces) after a line ending in
{. Spaces left before the cursor are dropped, so a line of only spaces becomes empty. - Enter between
{and}puts the}on a line of its own, with the cursor indented on the line between. - Tab inserts 4 spaces.
- Typing
}on a line that only has spaces so far removes one level of indentation.
- Enter starts the new line with the same indentation as the current one,
plus one more level (4 spaces) after a line ending in
- Closing brackets and quotes. Typing
(,[,{or"also types the closing one after the cursor, when what follows is a space, the end of the line or a closing character. A"isn’t closed right after a letter or inside a string or comment. Typing a closing character next to the same one steps over it, and Backspace between an empty pair ((|)) deletes both. With text selected, an opening character goes around it. - Matching brackets. With the cursor next to a bracket, it and its partner get a box. Brackets in strings and comments don’t count.
- Folding. Each line that opens a
{block whose}is on a later line has an arrow left of its code (shown while the pointer is over the margin). Click it to fold the block to one line, shown as{ … }, and again to unfold it. The line numbers skip the folded lines. The cursor steps over a folded block; a block unfolds when the cursor or an edit goes into it. - Several cursors. Alt+click adds a cursor (Alt+click on one takes it away again), Cmd+D selects the word at the cursor and then each next place it’s found, and Cmd+Alt+Up or Down adds one on the line above or below. Typing, Backspace and Delete, the arrow keys, Home and End, cut, copy and paste work at every cursor. Pasting as many lines as there are cursors puts one line at each. Escape goes back to a single cursor.
Editing keys
Section titled “Editing keys”These are on top of the usual ones. On Windows, use Ctrl where it says Cmd. Each change is one step for undo.
| Keys | What they do |
|---|---|
| Cmd+/ | Comments out the line with // (or every line of the selection, at their least indentation), or uncomments it when all of them are comments. |
| Alt+Up, Alt+Down | Moves the line (or the selected lines) up or down. |
| Shift+Alt+Up, Shift+Alt+Down | Copies the line (or the selected lines) above or below. |
| Shift+Cmd+K | Deletes the line (or the selected lines). |
| Cmd+Enter, Shift+Cmd+Enter | Starts a new line below or above, whatever the cursor’s place on the line. |
| Tab, Shift+Tab | With a selection over several lines: indents or outdents them by 4 spaces. Shift+Tab outdents the cursor’s line too. |
| Cmd+], Cmd+[ | Indents or outdents the line (or the selected lines). |
| Cmd+L | Selects the line; again, the next one too. |
| Home | Goes to the line’s first character that isn’t a space; again, to its very start. Cmd+Left does the same. |
| Cmd+D | Selects the word at the cursor; again, adds the next place it’s found as another cursor. |
| Alt+click | Adds a cursor (or takes one away). |
| Cmd+Alt+Up, Cmd+Alt+Down | Adds a cursor on the line above or below. |
| Escape | Goes back to one cursor (with one, stops editing). |
| Cmd+Alt+[, Cmd+Alt+] | Folds or unfolds the block the cursor is in. |
A .shortcut of the app takes its keys
from the editor only when it asks for exactly those keys: .shortcut("shift+k")
takes Shift+Cmd+K, but .shortcut("k") (which otherwise also runs with Shift)
leaves it to the editor.
Marking errors
Section titled “Marking errors”errorLines: takes a list of line numbers. Each one gets a light red background
and a red mark in the gutter. It’s an ordinary list, so it can come from
anything, typically from checking the text:
CodeEditor(text: doc.text, errorLines: problems.filter { p in p.file == doc.path }.map { p in p.line })The IDE gets its errors by running tessel query errors
with runCommand and parsing each line
of output. It also underlines each error with errorRanges: (see
Understanding code).
Following and moving the cursor
Section titled “Following and moving the cursor”line: is a two-way binding to the
line the cursor is on:
- When the cursor moves (by typing, clicking or the arrow keys), the editor writes its line number into the bound value. The example above uses that to show “Line 5” under the editor.
- When your code changes the value, the editor puts the cursor at the
start of that line, scrolls it into view, and starts editing, ready for the
user to type. If the user last clicked in a view with
.onKey, that view keeps the keyboard: the editor only scrolls to the line.
That’s how you jump to an error: store the line in the bound value, for example when the user clicks an error in a list. Setting it to the line the cursor is already on does nothing, since nothing changed.
caret: does the same with the exact place: a byte offset in text. The
editor writes it as the caret moves, and when your code changes it, the
caret goes there and the editor scrolls it into view, a third of the way
down. An editor that appears with caret: already set to something other
than 0 starts with its caret there, so a file opened to show a place shows
it.
Finding text
Section titled “Finding text”Two parameters are for a find bar, like the Tessel IDE’s:
matches:marks what a search found with a yellow background. The match that’s selected is a stronger orange.selection:is a two-way binding to what’s selected: aRangefrom the first byte selected up to the one after the last. With nothing selected, it’s where the cursor is (7..7), andstartandendare the same.
Like caret: and the editor’s other offsets, both count bytes of text, in
UTF-8, from 0 at the start. For plain ASCII text, a byte is a character;
Data(text: s).count is the size of any text in bytes.
app Finder(width: 460, height: 240) { state source = "let a = 1\nlet b = a + a\nprint(b)\n" state query = "a" state selection = 0..0
VStack(spacing: 8) { TextField("Find", text: query) CodeEditor(text: source, matches: found(), selection: selection) HStack { Text("Selected: {selection.start} to {selection.end}").color(.secondary) Spacer() Button("Next") { next() } } } .padding(12)
// Every place `query` is in the text: the pieces between them say // where (in bytes). fn found() -> [Range] { var out: [Range] = [] if query == "" { return out } let size = Data(text: query).count var at = 0 let pieces = source.split(query) for (i, piece) in pieces.enumerated() { at += Data(text: piece).count if i < pieces.count - 1 { out.append(at..at + size) at += size } } out }
// The next one after what's selected, or the first. fn next() { let all = found() if let r = all.first(where: { r in r.start >= selection.end }) { selection = r } else if let r = all.first { selection = r } }}- When the user selects or moves the cursor, the editor writes the selection into the bound value.
- When your code changes the value, the editor selects that stretch and
scrolls to it, if it doesn’t show already. Like
line:, it starts editing, unless another text field is being edited (the find field, say) or a view with.onKeyhas the keyboard. Then the editor keeps the selection, and shows it, for when it’s edited again. - A new editor starts with the selection it’s given, scrolled to it.
caret:andline:follow the selection the program sets.
To give the editor the keyboard back, when the find bar closes, call
startEditing with its
.id: it goes on with the selection it kept.
.onFieldKey gives the find field the
Enter, Shift+Enter and Escape keys, to go to the next match, the one before,
or close.
Setting text and selection together, as a Replace button does, is one
step of the editor’s undo history.
Code completion
Section titled “Code completion”The editor can offer suggestions as the user types, in a list under the word. You provide them; the editor decides when to ask, shows and filters them, and inserts the chosen one:
- When the user starts a word (or types
.), the editor callsonCompletewith the cursor’s position intext, as a byte offset. - Your code works out the suggestions, maybe in the background, and sets
completionsto a list ofCompletionvalues, andcompletionStartto the offset where the word starts. - The list shows while the cursor stays in that word, keeping only the
suggestions that match what’s typed so far. It only shows when
completionStartis where the current word starts, so a late answer for a word the user has moved on from never shows.
Completion is a built-in struct:
Completion(label: "count", detail: "Int", kind: "variable")labelis inserted in place of the word.detailis shown in gray on the right, like a type or a signature.kindpicks the little badge:"function","method","variable","field","view","modifier","type","case"or"keyword". Accepting a function, method, view or modifier also types((or()when itsdetailstarts with()).
While the list shows, Up and Down choose, Enter or Tab insert, and Escape closes it. Clicking a suggestion inserts it too. Enter on a suggestion that’s already typed in full just starts a new line.
A small example with a fixed list of words:
app Editor(width: 500, height: 300) { state code = "" state suggestions: [Completion] = [] state start = 0
CodeEditor(text: code, completions: suggestions, completionStart: start, onComplete: { offset in suggest(offset: offset) })
fn suggest(offset: Int) { // The word starts after the last space or `.` before the cursor. let chars = code.characters var s = offset for _ in 0..offset { if s > 0 && chars[s - 1] != " " && chars[s - 1] != "." { s -= 1 } } start = s suggestions = ["count", "color", "print"].map { w in Completion(label: w, detail: "", kind: "variable") } }}(This counts characters, which equal bytes only for plain ASCII text. The
Tessel IDE asks tessel complete instead, which knows Tessel
and works in bytes.)
Understanding code
Section titled “Understanding code”The editor can show what the code means and ask about it, as the
Tessel IDE does with errors as you type,
hover, go to definition, find all uses and rename. You work out the
answers (the IDE asks tessel query); the
editor shows them and says when they’re wanted. Places in the text are
byte offsets, as Ranges like 28..33.
app Explain(width: 480, height: 220) { state code = "let count = 1\nprint(count + cuont)\n" state uses: [Range] = [] state hoverText = "" state hoverAt = -1 state said = ""
VStack(spacing: 8) { CodeEditor( text: code, errorRanges: [28..33], highlights: uses, onHover: { offset in hoverAt = offset hoverText = if offset >= 28 && offset < 33 { "cannot find `cuont`" } else { "" } }, hoverText: hoverText, hoverAt: hoverAt, onDefinition: { offset in said = "Cmd-click at {offset}" }, onCaret: { offset in let onCount = offset >= 4 && offset <= 9 || offset >= 20 && offset <= 25 uses = if onCount { [4..9, 20..25] } else { [] } } ) Text(said).color(.secondary) } .padding(12)}
errorRanges:are underlined with a red wavy line. An empty range (at the end of a line, say) underlines the character there.highlights:get a light gray background, under the selection.onHover:is called when the mouse has rested on a character of the text for half a second, with its offset. SethoverText:to what to show andhoverAt:to that same offset, now or later (after asking another program, say): the text shows in a tooltip under the word, while the mouse stays on it. Moving to another word, typing or clicking puts it away. An emptyhoverTextshows nothing.onDefinition:is called on a Cmd-click (Ctrl-click on Windows) in the text, with the offset clicked, after the caret goes there. F12 calls it too, with the caret’s offset.onUses:(Shift+F12) andonRename:(F2) are called with the caret’s offset.onCaret:is called whenever the caret moves, by typing, clicking or the keys, with its offset: the moment to highlight the uses of the name it’s on.
A right click in the text puts the caret where it’s clicked first (unless
it’s in the selection), so a .contextMenu
on the editor can act on what was clicked, through the offset onCaret
last gave.
For a debugger
Section titled “For a debugger”Three parameters make the margin a place for breakpoints, as in the Tessel IDE:
app Stops(width: 440, height: 200) { state source = "let a = 1\nlet b = 2\nprint(a + b)\n" state stops: [Int] = [2]
CodeEditor(text: source, breakpoints: stops, stoppedLine: 2, onBreakpoint: { line in if stops.contains(line) { stops.removeAll(where: { l in l == line }) } else { stops.append(line) } }) .padding(12)}breakpoints:lines get a red dot at the left of the margin.stoppedLine:is highlighted in yellow across the editor.onBreakpoint:is called with the line when the margin is clicked, beside that line. The editor doesn’t keep the breakpoints itself: the block changes the list, as above.
What these mean is up to your app. The editor only draws them.
A CodeEditor is flexible: it takes all
the space it’s offered, in both directions. Give it a .frame(height:) (or
width:) to make it smaller, or put it next to fixed-size views in a stack.
Several editors
Section titled “Several editors”When editors are made in a for loop, as tabs in a
TabView for example, give each one an .id
so it keeps its own undo history, scroll position and cursor when files are
opened and closed. This is how the IDE shows its open files:
TabView(selection: current, onClose: { path in closeDoc(path: path) }) { for doc in docs { CodeEditor(text: doc.text, errorLines: errorLines(path: doc.path), line: doc.line) .id(doc.path) .tabItem(doc.name) .tag(doc.path) }}.autofocus() works on a code editor too: it starts editing as soon as the
editor appears.
Pasting keeps line breaks (Windows line endings become plain \n). In a
one-line TextField, pasted line breaks become spaces instead.
